Forklift battery filling water system as the name suggests is a device for battery automatic filling water, can solve the battery hydrating imbalance, leakage, add, and so on and so forth, in the process of the application of the forklift battery, battery hydrating work belongs to the essential process, also is relatively complex, a bit not pay attention to, it is easy to lead to errors. Forklift battery automatic water replenishment system is a kind of technical and practical system, the application is very simple. The following is a detailed introduction to the use of forklift battery automatic water refill system.

Battery add filling water, all fault rate by the buoy module bridge plug, and at the same time filling water, has been full of jacking buoy, but the body of the liquid seal unit into the hole, after all units plug buoy jacking, charging process is completed, in the process of storage battery charging and discharging, due to the electrolytic and evaporation, will cause the water in the electrolyte and slowly to reduce, Thus, the electrolyte level drops.

Workflow of forklift battery automatic water refill system

1. The control system monitors the liquid level in real-time

2. When the liquid level drops (water shortage) and the device is in a static state, automatically enter the water refill process (water refill is not performed during power shortage or charge and discharge).

3. The liquid injection valve will open automatically, and distilled water will be added to all battery cells at the same time

4. After the liquid level of any battery cell reaches the standard, the corresponding liquid injection valve automatically closes, and excess water enters other water shortage cells

5. Water refill to battery cells until all battery cells are filled. Excessive rainwater circulates into the control unit

6. The automatic water refill is complete. Enter the monitoring process, and the controller is in the resting state

Use method of battery automatic water refill system

1. Automatic mode: The water refill mode is automatically monitored

2. Manual mode: The water refill mode is manually controlled by pressing the button

3. Water level confirmation: the jie controller show the highlighting liquid level indicator holes. Confirm visually

4. Electrolyte detection: open the upper cover of the float control liquid injection valve and pump through the reserved testing hole

The electrolyte was taken to detect the concentration

5. Ensure that the water tank is replenished at least once before use

This section describes the automatic battery water refill system

Battery automatic water replenishment system is a complementary product developed by Lianhong for professional users, with a highly integrated design. It is equivalent to adding a water-free upgrade component to the battery, helping professional users optimize product functions and increase product diversity.

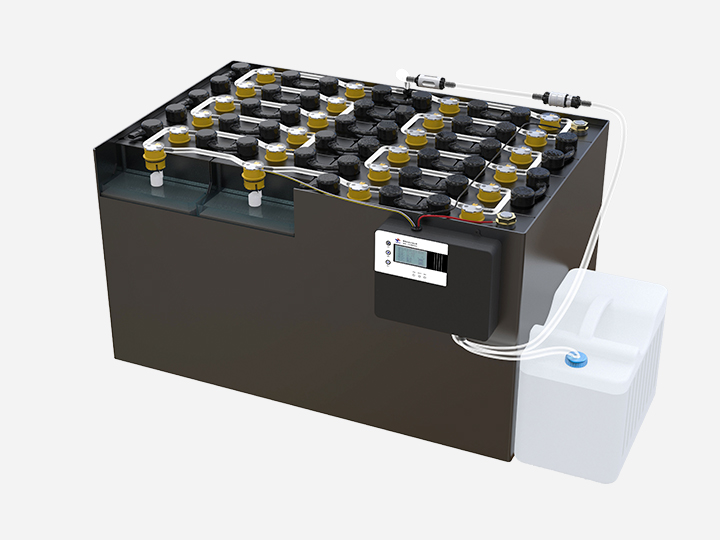

The battery automatic water replenishment system series consists of float control liquid filling plug kit, liquid level sensor, intelligent water replenishment controller and feed tank. It can monitor the battery level status in real time, automatically refill water when short of water, and automatically stop when full of water, so that the battery level is always in the healthiest state, effectively improve the battery efficiency and prolong the battery life.

The unique full coverage water tank design of the battery automatic water replenishment system can protect the battery from physical damage caused by improper operation, and ensure the daily cleaning of the battery in the heavy dust environment. It can effectively reduce the battery short circuit and self-discharge increase caused by the accumulation of dust.

Hubei Lham Energy Technology Co., Ltd. has been focusing on battery related accessories industry, the main products are: battery status indicator, battery safety valve (exhaust plug), battery equalizer, battery water gun, battery level alarm, battery automatic water refill system, etc. For more information about battery water maintenance skills, please pay attention to our official website: www.hblhnykj.com
