Forklift rich liquid battery water maintenance negligence will lead to the service life of the battery sharply shortened, that is, we often say that the battery die of thirst, timely knowledge of the battery water shortage information and add distilled water is an important process of battery daily maintenance. However, in real work is really ignored by the first-line forklift workers, so the need for forklift maintenance workers to timely learn about the battery water shortage information, then you can install a battery level alarm, battery water shortage will alarm prompt, you can timely understand the battery water situation. Here's how it works.

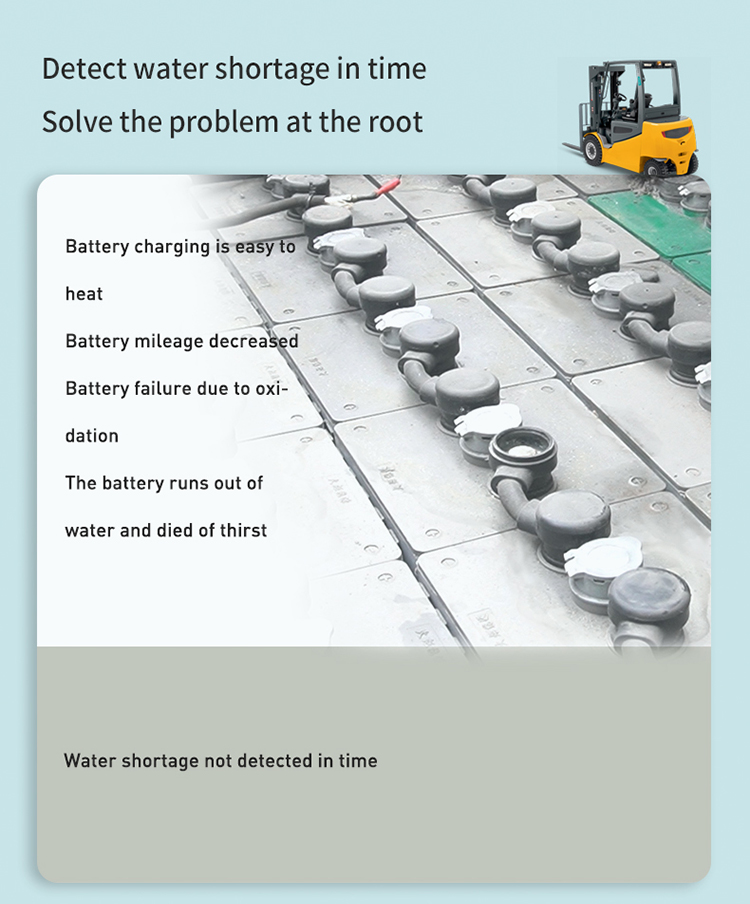

The internal moisture of the liquid-rich lead-acid battery will be slowly lost during the working process, so that the battery is in the state of liquid shortage. If the liquid shortage is serious and the liquid level is lower than the lead plate, it will have an irreversible and malignant effect on the service life of the battery. It is very important to find the liquid shortage of the battery in time and refill the battery.

This product has a liquid rich lead-acid battery water shortage warning function, can help users timely informed of the battery water shortage information, remind users to timely battery water maintenance (only add distilled water or deionized water), to ensure the normal use of batteries, prolong the service life of batteries.

Working principle of battery level alarm

Equipment as equipment operation power supply is connected directly to battery cathode, electrolyte after induction rods, through the battery of electric signal under water, light is not bright, buzzer rang, when the electrolyte is lower than the induction rods, determine the battery under water, warning lights (red light flashing), buzzer warning (normal mode).

1. Liquid level sensing: real-time sensing battery electrolyte liquid level, when the electrolyte level is lower than the sensor rod to produce water shortage signal.

2. Conventional mode: After receiving the water shortage signal transmitted by the induction rod, the water shortage warning light flashes (red light) and the buzzer alarms. Press the buzzer switch to switch the alarm mode.

3. Silent mode: After receiving the water shortage signal transmitted by the induction rod, the water shortage warning light flashes (red), and the buzzer continues to be silent. Press the buzzer switch to switch the alarm mode.

Installation instructions for battery level alarm

1. Before installation, ensure that the battery level alarm body and the induction liquid injection valve are complete and properly connected.

2. Remove the water injection valve from the battery cell where the positive pole of the lead acid battery group is located, and leave the water port empty.

3. Install the induction liquid injection valve into the empty water port (ensure that the induction rod does not touch the lead grid in the battery when installing).

4. Tear off the adhesive back of the battery liquid level alarm and stick it to the visible place of the equipment (such as next to the seat of the forklift and tractor. Make sure that the adhesive part is clean and not easy to be scratched before pasting to prevent accidental falling off).

5. Connect the power cable of the battery level alarm to the battery string. Connect the red wire to the positive terminal, and the black wire to the negative terminal (note the polarity of the battery.

6. If the power indicator is on (green), it indicates that the line is connected normally and the device works normally.

Battery level alarm is an auxiliary product for the directional development of rich lead-acid battery. This product makes full use of the structure and chemical characteristics of lead-acid battery, liquid level indicator results scientific and effective. The use of indicator light, buzzer double warning, warning effect striking, the product installed correctly after the normal operation of the battery has no impact, can be assured to use. For more information about the product, please contact our sales staff: 0710-3313598
