Product introduction

The battery water filling gun is a special tool for the maintenance of lead-acid battery water, which makes the maintenance work easy and efficient.

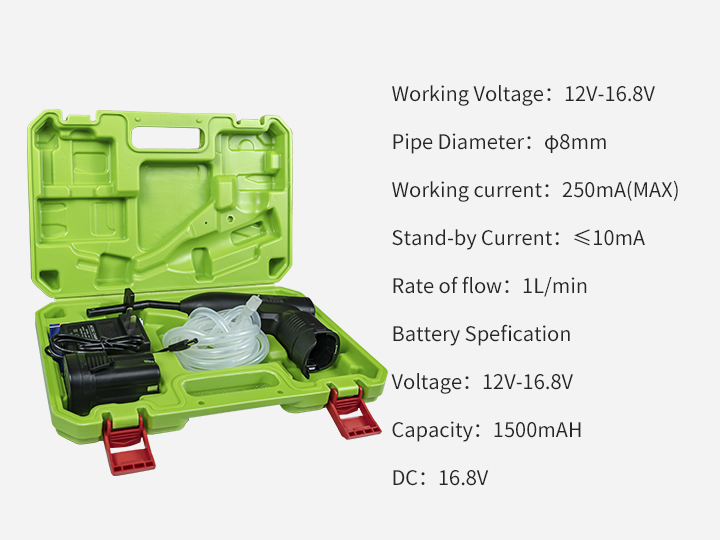

Technical Parameters

Working Voltage：12V-16.8V

Pipe Diameter：φ8mm

Working current：250mA(MAX)

Stand-by Current：≤10mA

Rate of flow：1L/min

Battery Spefication

Voltage：12V-16.8V

Capacity：1500mAH

DC：16.8V

Operation Guide

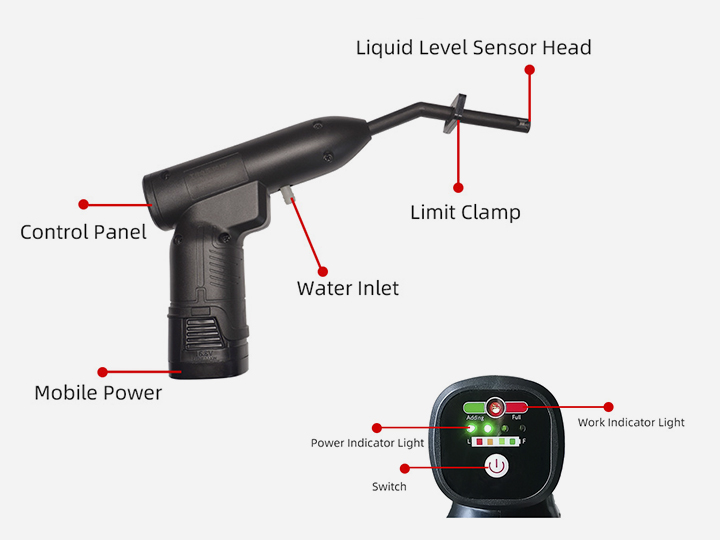

1.Connect the hose to the water inlet and put the end into distilled or deionized water

2.Before adding water to the battery, adjust the limit clamp to an appropriate position and lock it

according to the needs of use.

3.When filling water, put the battery filling plug into the liquid injection valve port, press the water filling switch, and the water filling gun starts to work. The water is pumped from the water inlet, and the target battery is filled with water through the liquid injection valve port. At this time, the working indicator light is green.

4.When the liquid level meets the requirements, the water filling gun will automatically stop working, and the working indicator will turn red. In order to avoid accidental touches, the water filling switch will fail at this time. After the muzzle is removed from the battery, the water filling switch function will return to normal.

Cautions

①The battery power is about 30% in factory, please charge it in advance before high-intensity

test or use.

②Do not pump strong corrosive liquids.

③Do not pump liquid with impurities.

④When not in use for a long time, please remove the battery and save it

⑤ The position of the positioning block can be adjusted according to the needs of use.

⑥When the battery is low, please charge it in time, and do not store it for a long time.

⑦Please keep the muzzle sensor clean to avoid the dirt bubbles covering the sensor and

causing poor induction.

Applicable scenario

• Electric tractor

• Electric forklift

• Industrial energy storage battery packs

• Golf cart
