Battery automatic watering system LH-WSA-101 is a complementary product developed by Lianhong for professional users. The highly integrated design is equivalent to adding a water-free upgrade component to the battery to help professional users optimize product functions and increase product diversit
产品详情

Battery automatic watering system LH-WSA-101 is a complementary product developed by Lianhong for professional users. The highly integrated design is equivalent to adding a water-free upgrade component to the battery to help professional users optimize product functions and increase product diversity.

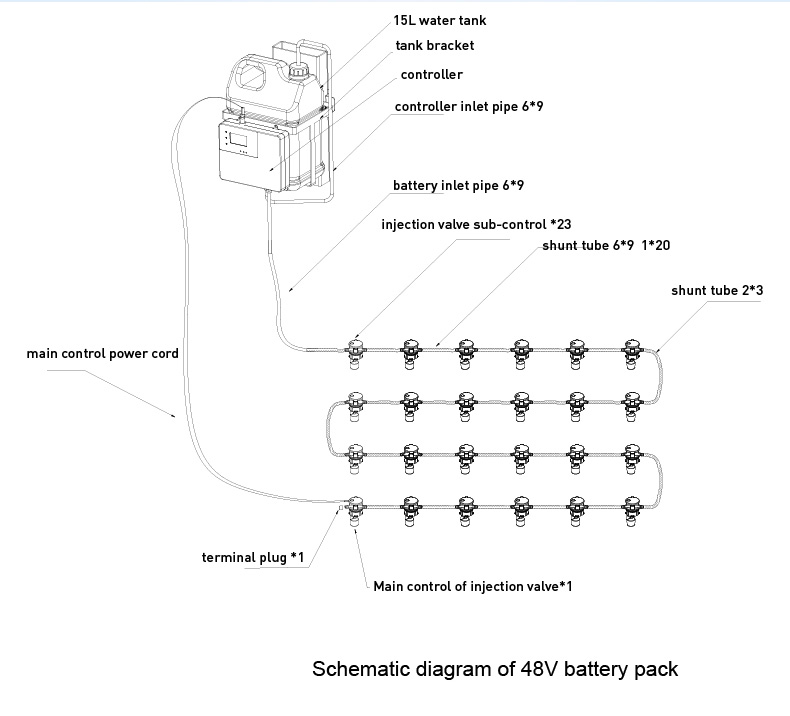

The LH-WSA battery automatic filling water system is composed of a float-controlled filling plug kit, a liquid level sensor, an intelligent water filling controller, and a water supply tank. It can monitor the battery liquid level status in real time, automatically replenish water when water is shortage, and automatically stop when the water is full, which always make the battery liquid level is in the healthiest state, effectively improve battery performance and extend the battery service life.



The LH-WSA-101 unique full-covering water tank design can protect the battery from physical damage caused by improper operation, prevent dirt and dust, ensure the daily cleaning of the battery in a heavy dust environment, and effectively reduce the accumulation of dust which will cause the battery's short circuit and self-discharge increase.

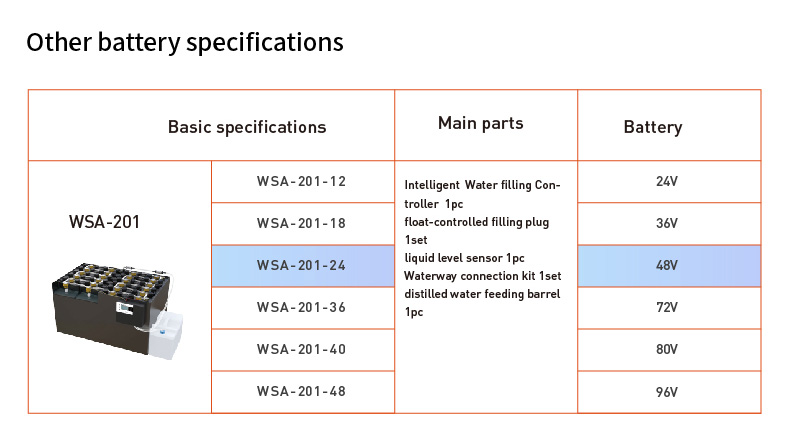

Type table:

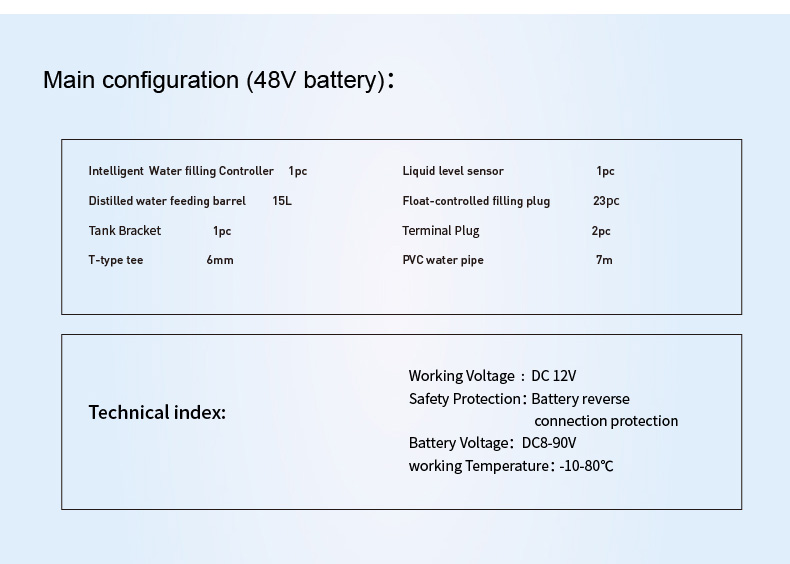

Structure configuration:




Technical index:

Working Voltage: DC 12V

Safety Protection: Battery reverse connection protection

Battery Voltage: DC8-90V working

Temperature: -10-80℃

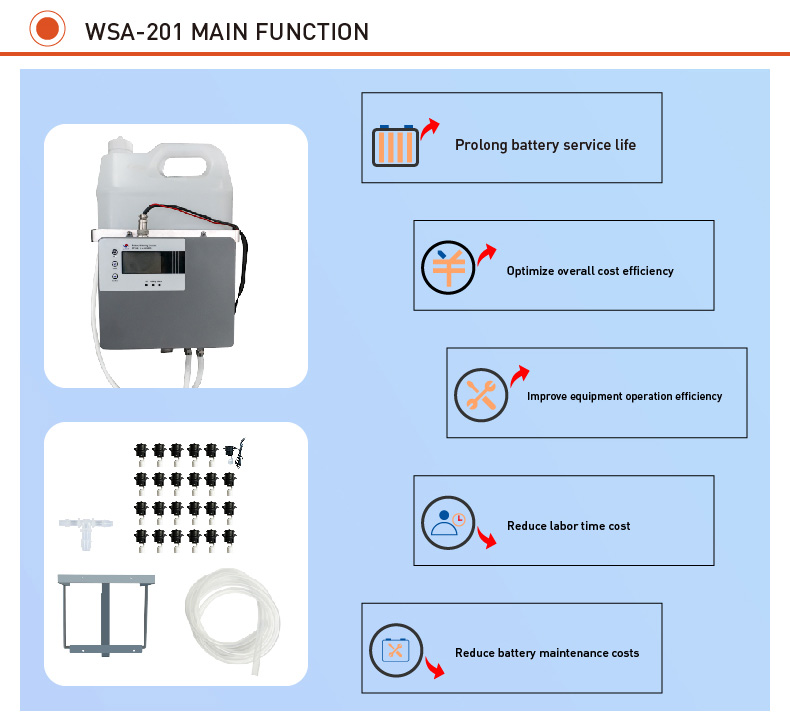

WSA function:

Real-time liquid level monitoring

Automatically replenish water when lack of water

Automatic stop when water is full

Balance battery level dust-proof prevent attack



WSA101 advantages:

Prolong battery service life

Reduce battery maintenance costs

Reduce labor time cost Improve equipment operation efficiency

Optimize overall cost efficiency
