As a relatively mature technology at present, lead-acid battery still occupies an important position in the industrial equipment and service equipment market in pursuit of reliability, stability and adaptability. It is widely used as power source in high-power equipment such as electric forklift truck, electric tractor, sightseeing car and goff cart.

Why does the battery need water?

To add water because of battery electrolyte battery composed of sulfuric acid and distilled water in proportion to allocate, in the process of using battery electrolyte temperature, charge and discharge frequently, this process can cause the ratio of electrolyte imbalance, even larger forming corrosion sulfuric acid concentration, therefore, to regularly give added just the right amount of distilled water, make up water consumption. Only by adding the right amount of distilled water can the normal charging and discharging function of the electrolyte be maintained and the service life of the battery be maintained.

How does the battery add water?

Water filling method: open the filling cover of the non-maintenance-free battery and fill with distilled water. The water should not touch the filling port. Maintenance-free battery to find and remove the valve, add distilled or purified water can be. It should be noted that if the supplement is ordinary water, the impurities contained in the electrode will be deposited, resulting in insufficient charging or even unable to charge, so distilled water must be used.

The initial discharge capacity of the colloidal battery is only about 80% of the rich liquid battery, which is due to the use of poor performance of the colloidal electrolyte directly into the rich liquid battery without modification, the internal resistance of the battery is large, and the ion migration in the electrolyte is difficult to cause.

Introduce the method of adding water to batteries

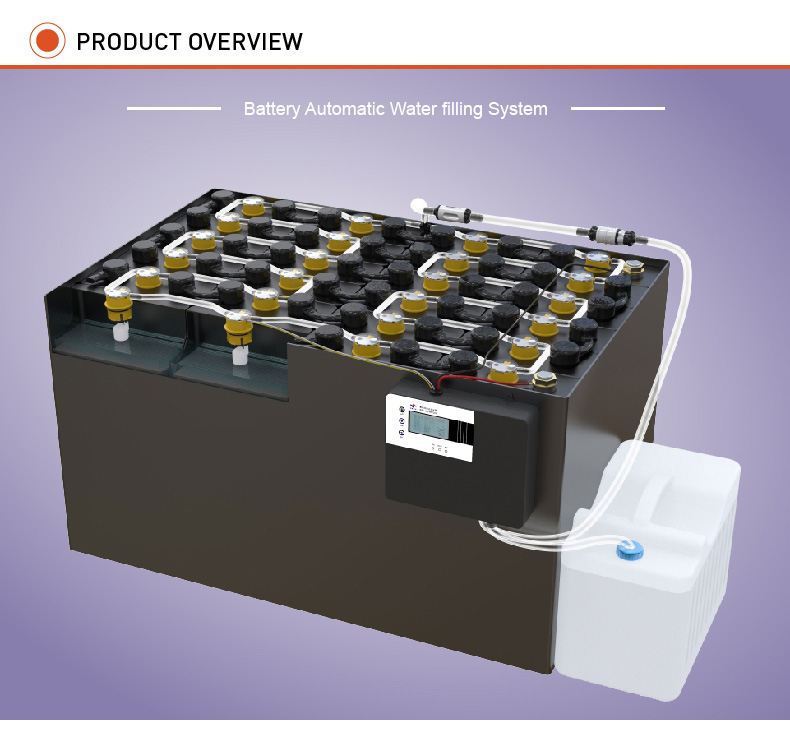

Battery water black technology - battery intelligent water adding system: Battery intelligent water system is the company independent research and development of patented products, is a battery development in view of the rich fluid automatic filling equipment, can fully replace the artificial water battery maintenance operations, real-time monitoring of battery and dehydration, automatic filling water, with water induction automatic stop, after the installation of equipment can keep the electrolyte level the entire in health, to ensure that the battery electrolyte features stable, balance, Optimize the efficiency of storage battery equipment and extend the service life of storage battery.

Work flow of Lham intelligent water adding system

1. The control system monitors the liquid level in real-time

2. If the liquid level is insufficient (water shortage) and the device is in a static state, automatically enter the water refill process

3. The liquid injection valve will open automatically, and distilled water will be added to all battery cells at the same time

4. When the liquid level of any battery cell reaches the standard, the corresponding liquid injection valve automatically closes, and the excess water circulates into the control unit to prevent water pipe damage caused by excessive water pressure

5. If the liquid level does not reach the standard, continue the water refill process until all batteries are filled

6. Automatically cut out the water refill process and enter the monitoring process. The controller is in the idle state, and the single water refill process ends

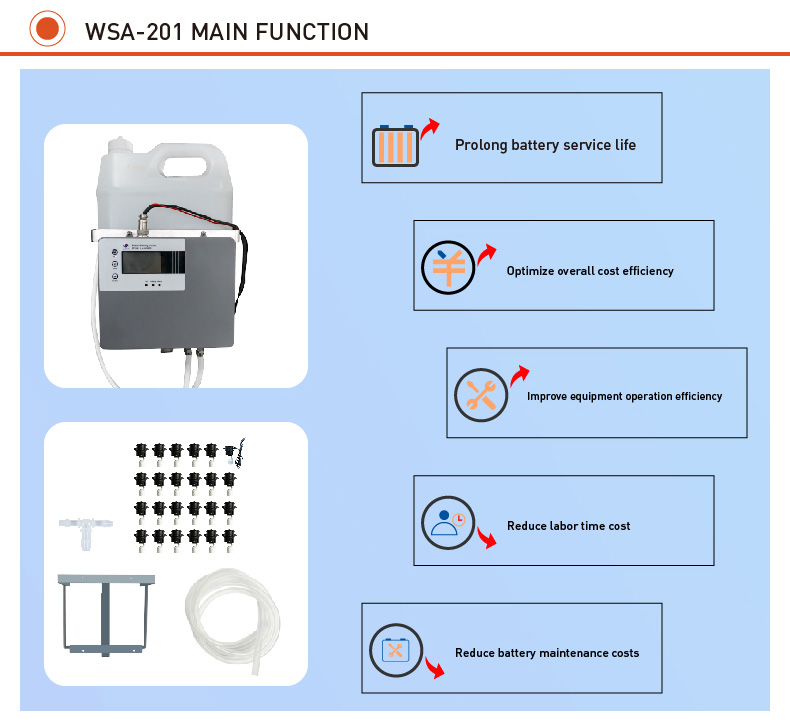

Lham battery intelligent water adding system retains the advantages of high stability, strong environmental adaptability and low price of ordinary lead-acid battery, and has a stable service life and great maintenance convenience at a very low cost, with a very considerable cost performance. More about battery water maintenance can pay attention to our official website dynamics.
