During the operation of lead-acid batteries, the charge and discharge of the two batteries will be different due to the differences in the chemical composition and temperature of the battery. Even when the battery is idle, it will cause unbalance between batteries connected in series due to different degrees of self-discharge. Many users will buy a dedicated battery equalizer storage can real-time guarantee the balance between the battery grid. So people will ask, does this battery equalizer work? The following Xiaobian for you to introduce in detail.

During the charging process of lead-acid batteries, due to the existence of differences, one battery will be overcharged or discharged, while the other battery will not be fully charged or discharged. With the repeated charging and discharging process, this difference will gradually strengthen, so that the single compartment battery water imbalance caused by voltage and single compartment battery discharge inconsistency, and eventually lead to the premature failure of the single compartment too much water loss battery, so that the whole battery damage.

Does the lead-acid battery equalizer work?

Xiaobian here to answer you: lead-acid battery equalizer is useful! The lead-acid battery equalizer itself is a typical current and voltage balancing device. When charging, the equalizer is to detect the voltage, find the pressure difference through the current, voltage mutual energy transfer compensation. To achieve the balance of the battery voltage convergence, to prevent the battery overcharge and undercharge!

Lead-acid battery equalizer has a good protective effect on the battery and can prolong the service life of the battery.

The battery equalizer also becomes the battery balancer, is a kind of electronic protection equipment that prevents the service life of the battery from being reduced due to the voltage imbalance between the battery cells inside the battery.

When the voltage between battery cells is out of balance, different battery cells have different charging and discharging speeds. When one battery cell is charged, the other battery cells are in the state of overcharging or undercharging. Overcharging or undercharging will damage the battery, reducing the battery capacity and shortening the battery life. The battery equalizer can balance the power of each battery grid in real time, thus extending the service life of the battery by 5-30%.

Function of lead-acid battery equalizer

Battery equalizer, also known as battery balancer, is a kind of electronic protection equipment to prevent the service life of the battery from being reduced due to the voltage imbalance between the cells inside the battery. When the voltage between battery cells is out of balance, different battery cells have different charging and discharging speeds. When one battery cell is charged, the other battery cells are in the state of overcharging or undercharging. Overcharging or undercharging will damage the battery, reducing the battery capacity and shortening the battery life. The battery equalizer can balance the power of each battery grid in real time, thus extending the service life of the battery by 5-30%.

In addition to the voltage balancing function, the battery equalizer also has the function design of undervoltage alarm and electric quantity display, so that users can observe the battery status directly. The product is mainly used in series environment of lead-acid battery (VRLA). Equalizer is not affected by battery connection mode, and can work in series or parallel.

What are the battery equalizer models and specifications?

At present, our company has developed and produced the following three equalizer models: 24V, 48V, 60V; Here are the introductions

BE-101 (24V) battery equalizer is used for 2 sets of batteries in series. It is connected to the battery system for 24 hours, so that the current will flow from the higher voltage to the lower voltage, so that the battery will maintain the voltage equal when charging and discharging, and finally extend the overall life of the battery system.

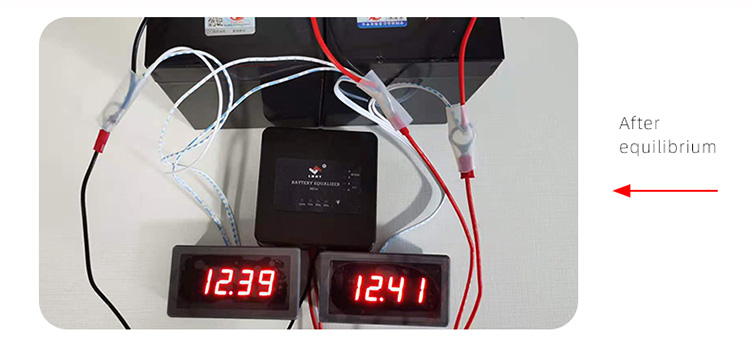

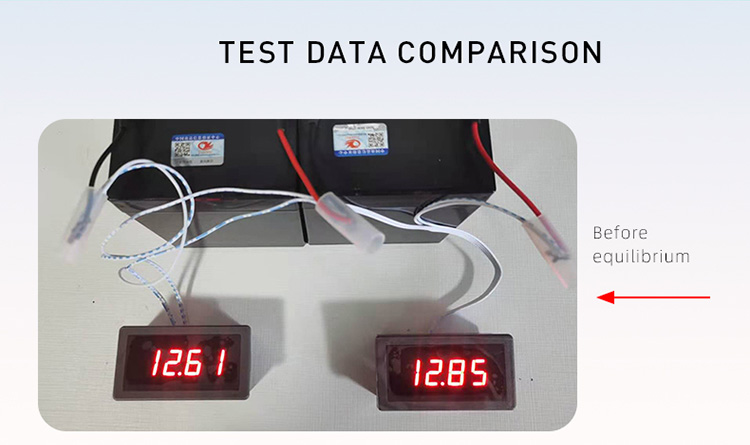

The battery equalizer is used for the battery string in series. When the voltage between the two batteries is greater than 60mV, it automatically starts the balancing action and balances the battery voltage. The product is connected to the battery for 24 hours, so that the battery can automatically maintain the system energy balance when charging and discharging, thus extending the battery life.

BE-201 (48V) battery equalizer is used for 4 groups of batteries in series. It is connected to the battery system for 24 hours, so that the current will flow from the higher voltage to the lower voltage, so that the battery will keep the voltage equal when charging and discharging, and finally extend the overall life of the battery system.

BE-202 (60V) battery equalizer is used for 5 groups of batteries in series. It is connected to the battery system for 24 hours, so that the current will flow from the higher voltage to the lower voltage, so that the battery will maintain the voltage equal when charging and discharging, and finally extend the overall life of the battery system.

Battery equalizer is suitable for lead-acid battery, lithium iron phosphate battery and ternary lithium battery. When the voltage is higher than 2.4V, this means that the equalizer can be applied to a single 2.4V-12V cell. At least two batteries are connected in series for a balance. The extra cables can be suspended without affecting the balance effect.

Lham Battery Equalizer is a lead acid battery active equalization system developed with many years of dedication. It solves the balanced charging and discharge problems of battery packs such as electric forklifts, electric vehicles and electric tractors, and effectively extends the battery range and the service life of battery packs. For more information about equalizer, please call: 0710-3313598
